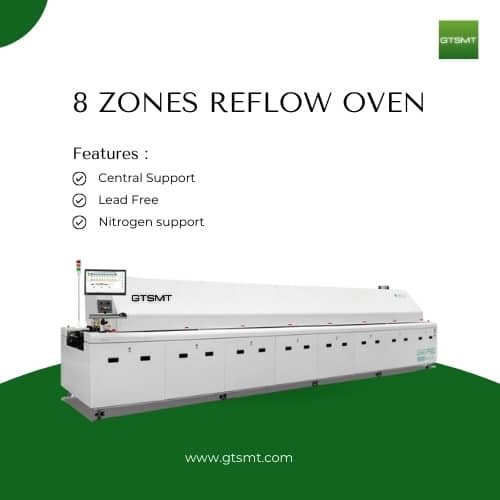

8 zones reflow oven

Model GT-8000
No of Heating zones Top 8 / Bottom 8
No of Cooling zones Up 2 (The interior-circulation of cold air)
Exhaust Volume Up 2  (interior-circulation of air)
Max PCB width 250*2 (single channel 50~450mm)
Conveyor Rail fixed Front and rear rail fixed, Two adjustable rails at center
PCB transmission Chain + Mesh (Option: Chain)
Power Consumption 32KV, 3Phase ,380V 50/60 Hz(Option : 3,220V 50/60Hz)
Max Temp range 300 Celcius
Temp Control Mode Pid Full Closed loop control, SSR Driving
Dimension 5378mm * 1539mm * 1490mm
Weight Approx 2645 kg
Dual Lane Transmission Dual Lane with letter D,1,3 or 1,4 fixed, Max width PCB 300 * 300
Category:
8 zones reflow oven

8 zones reflow oven standard industry with 8 heating and 2 cooling zones for better results during soldering process of PCB board and led lighting manufacturer.

Hardware Features:
  • Board drop detection
  • Uninterruptible power supply
  • Guaranteed Lead-Free Process
  • Automatic edge rail lubrication
  • 320 C high-temperature processing capabilities
  • Board counter
  • Motorized width adjust
  • Seema communication
Excellent Thermal Convection System

An efficient power design and heat management system greatly improves energy savings while lowering carbon emissions.

Reliable Conveyor System

The guide rail is made from special aluminum alloy the surface is covered by oxidation and has super hard film which is hard to deform and corroded

8 zone reflow oven

Nitrogen,
Central Support,
Customization Max. width
Dual lane conveyor with independent speed control
