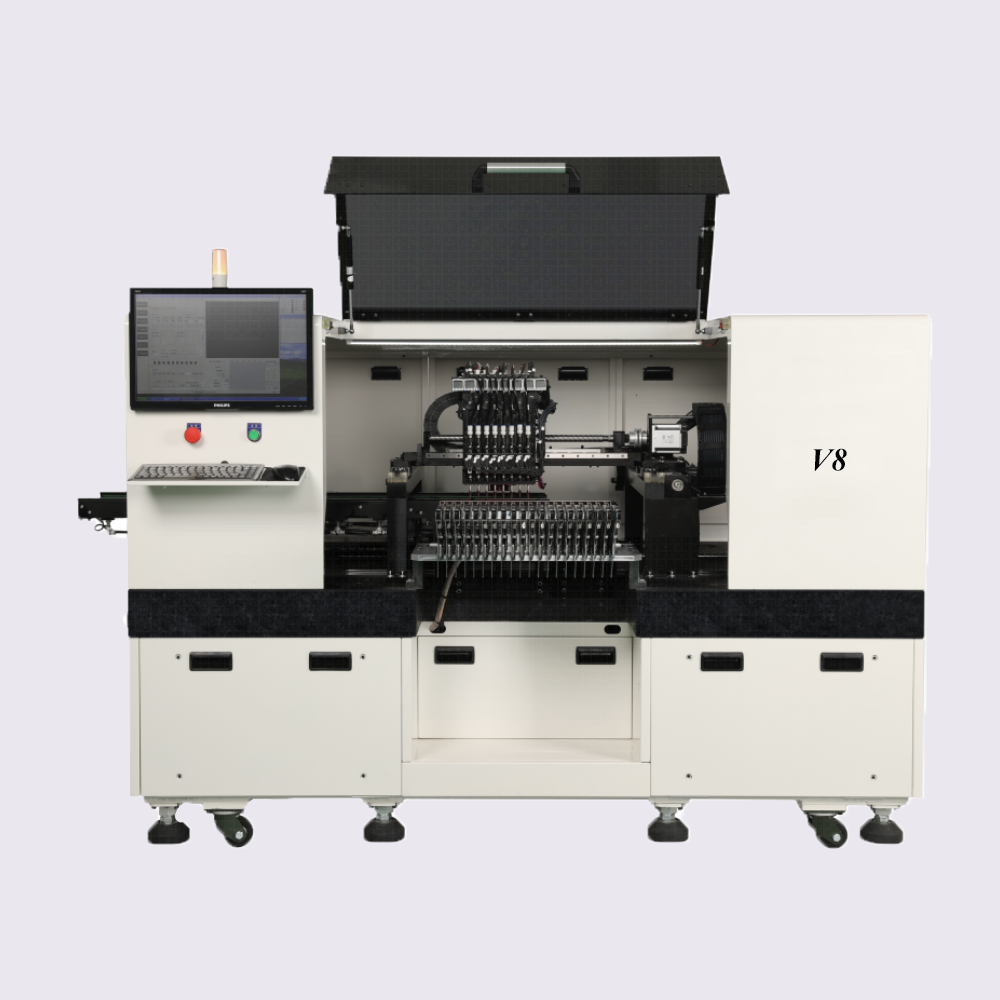

Led Lens Pick and Place Machine V8

Product Features

High-accuracy: Vision On the Fly Alignment to guarantee high accuracy.
With a SMEMA-compatible inline conveyor for line automation.
Specially designed for LED lenses assembly.
Customization vibration tray for feeding LED Lens.
Can also place SMD components from 0603 to 7474, including resistors, capacitors, high-power LED, standard and irregularly shaped LEDs.
Magnetic levitation linear motor(Servotronix) in X and Y axis for high repeatability and stability.
Using imported high precision ball screw, motor, solenoid valve, cable, etc., effectively improve the placement accuracy and stability.
Self-developed software simplifies production, easy operating and programming.

Type		Led Lens Pick and Place Machine
Alignment		Flying Vision Alignment System
Number of Spindles		8 Spindles x 1 Gantry
Placement Speed	FOR LENS	18000CPH (Optimum)
	For LED	40000CPH (Optimum)
Placement Accuracy		±0.03mm (Based on the standard chips)
Component Range	Vision Alignment	For all General lenses (Maximum 15.8MM)
	Max Height	H=12mm
Board Dimension(mm)	Minimum	50(L) x 50(W)
	Maximum	1,200(L) x 460(W)
	PCB Thickness	0.5 – 3.0
Board Handling Method		Inline Conveyor
Lens Feeding		Customized Vibration Tray
Tape Feeder	Feeder Type	Electric Feeder
	Feeder Capacity	20 (12mm)
Utility	Power	AC 220V/240V 50/60Hz, Single phase
		Max 3.2KW
	Air Consumption	0.55-0.7MPa (5.6-7.1kgf/cm2)
Mass		Approx. 1680kg + 100kg
External Dimension(mm)		2,000(L) x 1,150(D) x 1,400(H)

Excellent Quality Hardware Support

Ball Screws	KURODA / THK / NSK (Japan)
Linear Guide	HIWIN (Taiwan)
Magnetic Levitation Linear Motor Driver	Servotronix (Israel)
Servo Motors & Drivers	PANASONIC (Japan) / MOONS (China)
Stepper Motors & Drivers	MOONS (China)
Cables & Tank Chain	IGUS (Germany)
Solenoid Value	CKD (Japan) / MAC (America)
IPC	Independent Research & Development

Attached 1: P&P Machine Standard Spare Parts List
No.	Specifications	Qty
1	VIBRATORY BOWL FEEDER FOR LED LENS (8 CHANNELS)	1
2	Nozzles	24
3	Hexagon Wrench Tool 六角扳手	1
4	Material Rack 飞达料架	1

Led Lens Pick and Place Machine V8
