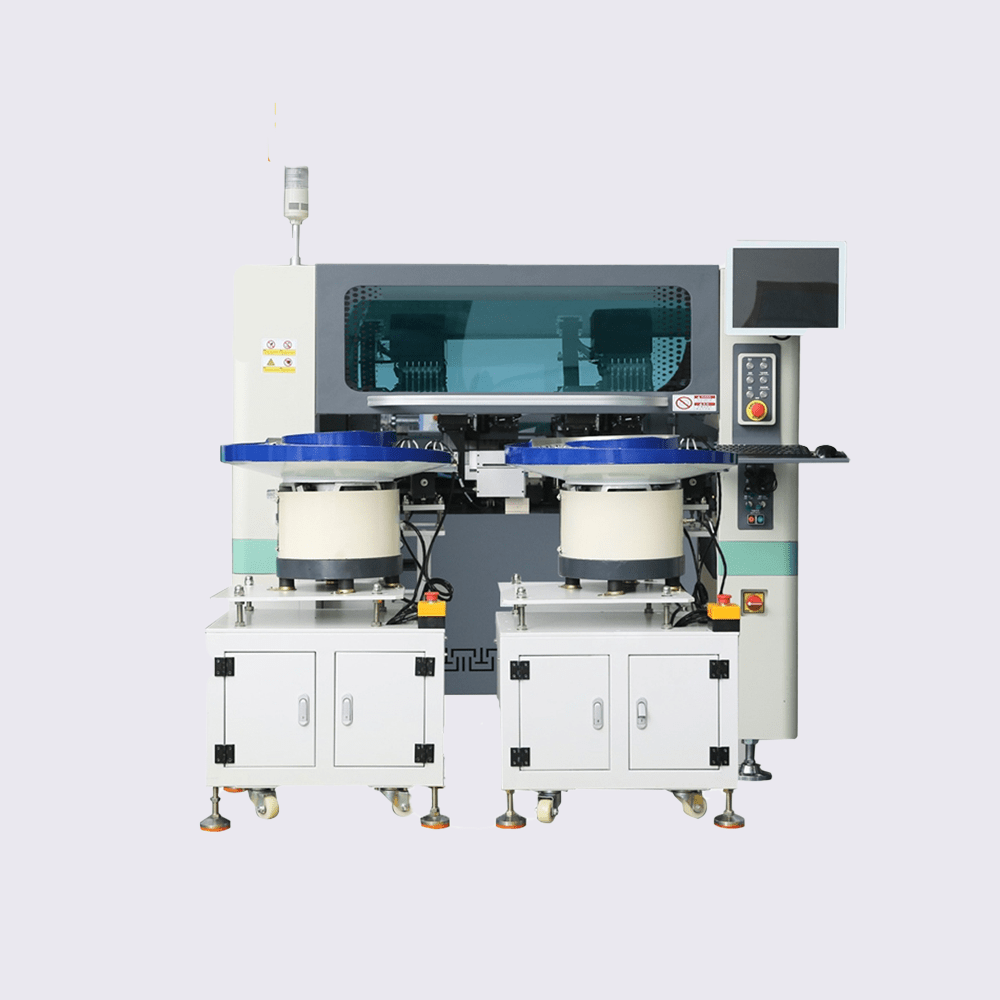

led tv backlight lens pick and place machine H2T for best production

Parameter specification	Lens Pick and place machine
Alignment Camera	Fly Vision (1.2 million pixels)
Number of spindles	6 spindles * 2 = 12 ( each head 6 ) twin heads
Placement Speed	Theoretical 18000 – 26000 / Blue light 10000-16000 CPH
Placement accuracy	0.035mm
PCB top plate mode	Double top mechanism and adjustable splint type
Component range	Various sizes of lenses
Board Dimension	Min 80 * 80 mm / Max 400 * 1200 mm /Thickness 0.8 – 9.0 mm
Feeder base	Bowl Feeder of two sets of 6 channels
Power supply / air pressure	AC 220 V / 0.5 – 0.7 Mpa
Rate power	3.5 Kwa
Weight	1800 kg
External dimension	1790 (L) * 1490 (W) * 1460(H) mm

A high-speed maglev motor reduces noise and improves accuracy and stability.
The use of bus control technology maximizes placement speed.
A high precision compensation system is adopted to realize precision compensation and correction in device mounting movement
Application areas: lens mounting in the lighting industry.
