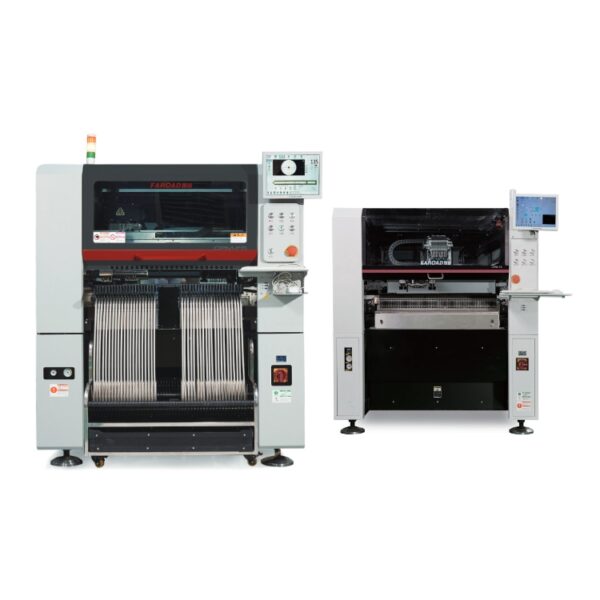

Multifunctional Pick and Place Machine CPM F2



Multifunctional Pick and Place MACHINE CPM-F2

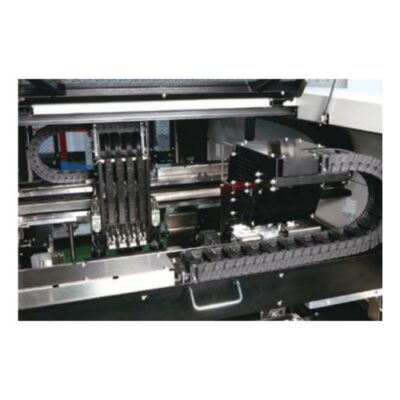

CPM-F2 is an industry-standard multifunctional SMT machine that is capable of placing multiple components simultaneously retaining the performance at its peak level. CPM -F2 has 76 feeder capacity and 1 head containing

8 spindles.

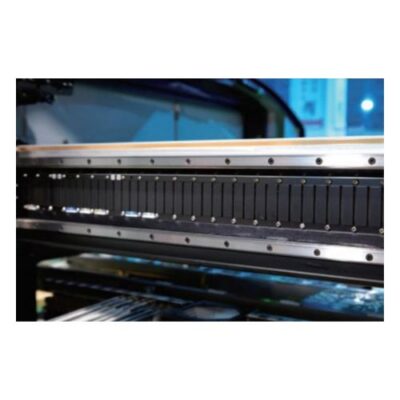

  • Equipped with Japanese Sanyo linear motor owing higher accuracy and lower abrasion.

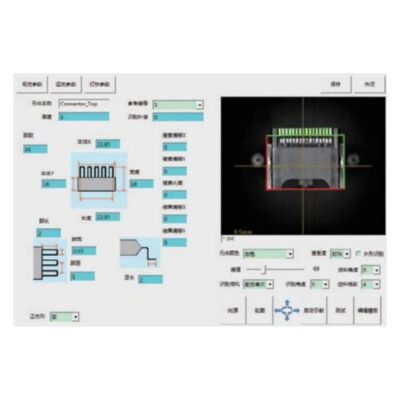

  • advanced Germany industrial linear scanning camera can achieve high-precision recognition of the component without mistiming and stopping

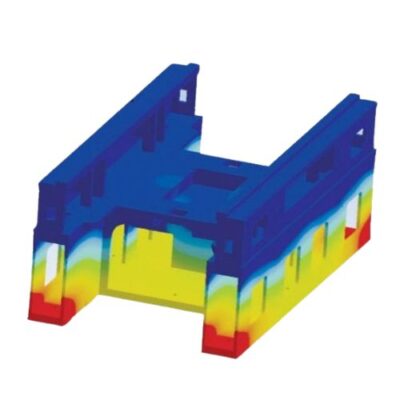

  • High accuracy thermal compensation system can monitor the placement precision in real-time and modify the placement automatically.

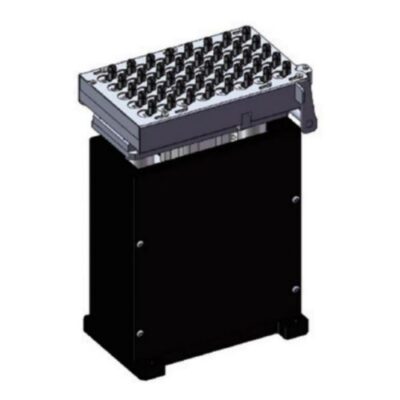

  • nozzles exchanged automatically ensure various components can be compatible.
  • using an electric feeder ensures the higher accuracy of the feeding process solving the component dumping caused by unstable situations
  • fast switching between Chinese and English interfaces is more suitable for the international market
