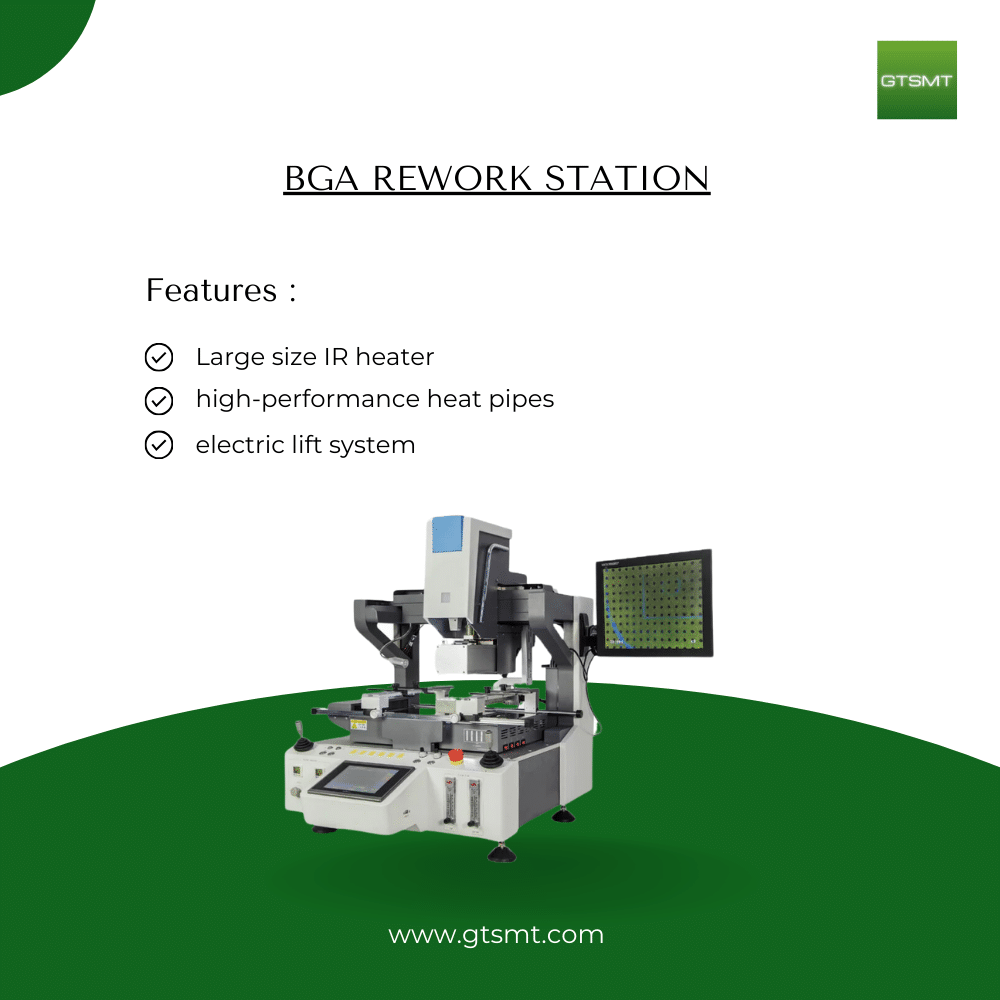

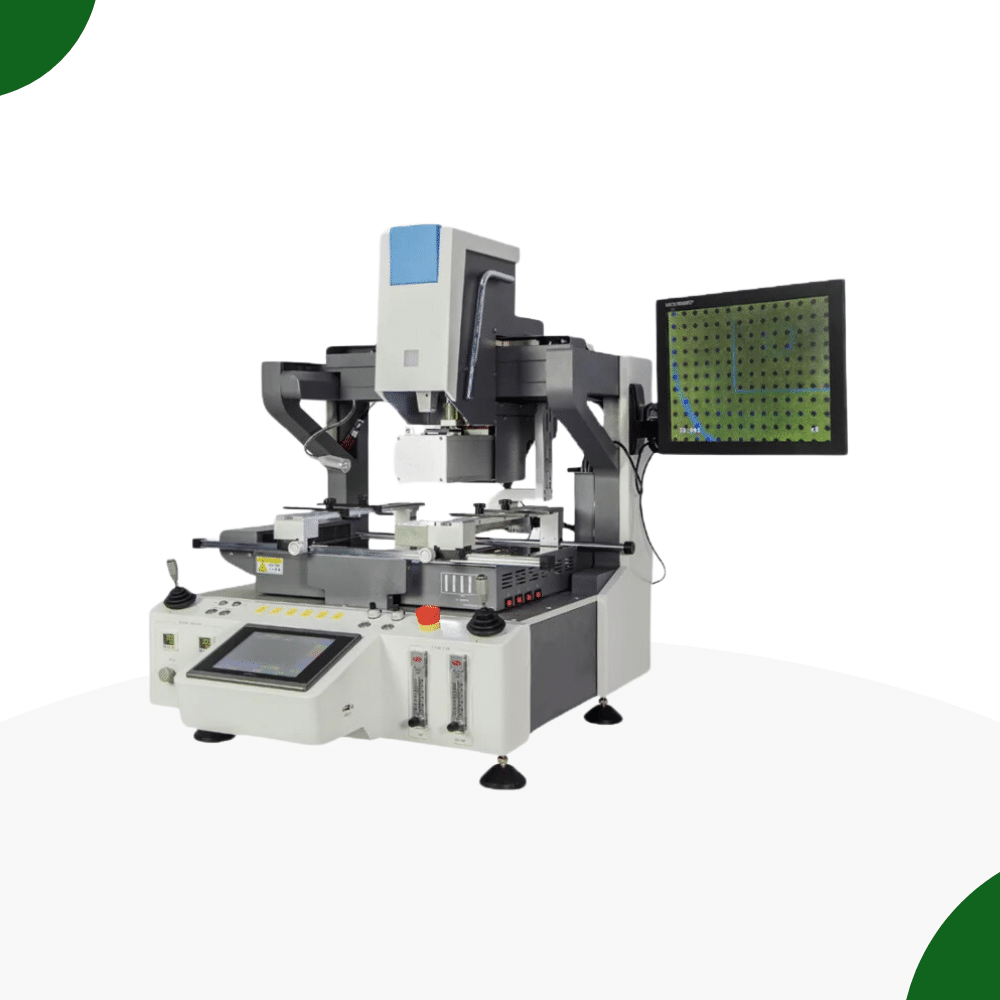

Desktop BGA REWORK STATION 783
Desktop BGA Rework Station is a compact and highly accurate SMT rework machine designed for benchtop use in laboratories, service centers, and low-volume production environments. It is ideal for reworking Ball Grid Array (BGA), CSP, QFN, and other surface-mount components on small to medium-sized PCBs.
Compact Precision Tool for BGA and SMT Component Repair
Equipped with a hot air or infrared heating system, precise temperature control, and manual or semi-automatic alignment, the desktop station allows for quick, repeatable, and reliable rework without taking up much space, perfect for setups where footprint matters.
Key Applications of desktop BGA rework station
• Manual or assisted rework of BGAs, QFNs, and other SMT components
• Used in R&D labs, PCB repair shops, and small-scale electronics assembly
• Ideal for educational purposes, prototyping, and aftermarket repair
Usage Benefits
• Compact design fits easily on any workbench or lab table
• Enables precise component removal, reballing, and replacement
• Affordable and accessible rework solution for smaller operations
• Supports both lead-free and traditional soldering processes
Parameter of Desktop BGA Rework Station
| Power: |
AC 380V ±10% 50/60Hz
|
| Total Power: | Max 7750W |
| Heater power: |
top heater 1450W bottom 1200W IR4800WOther 0.3KW
|
| Electrical materials: |
Servo Drive (Panasonic)＋8’Touch screen＋Panasonic PLC＋
|
| control system |
Precision Thermal
|
| Temperature control: |
K-type thermocouple (Closed Loop)
|
| Positioning: |
V-groove, PCB support + Laser automatic positioning
|
| PCB size: |
565*467mm (Max); 6*6mm (Min)
|
| BGA chip: |
80*80mm (Max); 2*2mm (Min)
|
| Dimensions： |
L810*W1100*H960mm (LCD stand not included)
|
| Sensors: | 5pcs |
| Weight: 1 | 51kg |
| Colour: | Silver & Blue |
