Pick and Place Machine L8

Model Mulitfunctional Pick and Place L8
Theoretical placement speed 50000chips/h
Servo resolution 10um
Placement accuracy +0.05mm
Substrate size Maximum 600mm*380mm (can be customized to 1.2 meters)
Substrate thickness 0.5mm-3.0mm
Board weight 0.68kg below
track length 1500mm
Number of working heads 8
Number of material stations 36 (customizable bilateral 70 material stations)
Feeder specifications 8mm-32mm
Applicable components From 0402 tiny chips to 14mm large components, as well as various types of LEDs, resistors, capacitors, ICs, etc.
Machine size L1330MM*W1400MM*H1450MM
weight 1500Kg
Category:

Pick and Place Machine L8

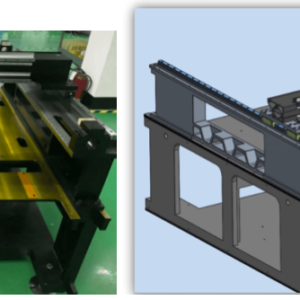

Base and Y axis are made by integrated design, X axis uses the high-hardness aluminum alloy and is suppressed into shape by a molding machine.

X axis is completed at one time by a large special equipment Every parts and installation planes of base and Y axis are assembled exactly to ensure high precision. Fast assembling to avoid deformation.

smt machine rigid body
smt machine rigid body

Spare Parts of Pick and Place Machine

  • The parts and base of head are made by aviation-grade aluminum, which makes the head more stable and reliable.
  • Adapting Japanese micro servo motor and IKO guide rail, which ensures the up-down of Z axis in high-speed, high-accuracy, and high stability.
  • High-precision ball spline ensures the high-accuracy of rotation of Pick and Place Machine.

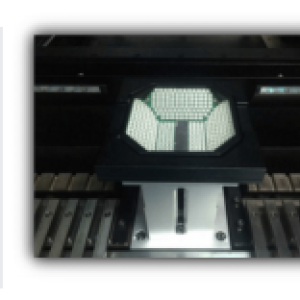

  • The recognition camera with excellent performance



smt machine camera
smt machine camera
  • Using Germany BASLER linear scan camera.
  • The Ring-shaped light source is made by OSRAM lamp beads that has highlight and high-stability, and lighting comes from its base and 8 sides.
