What Is an Automatic SMT Line?

Complete Beginner’s Guide to SMT Production Lines, Machines, and Manufacturing Benefits

In today’s electronics manufacturing industry, speed, precision, and efficiency are everything. That’s where automatic SMT lines come in. SMT stands for Surface Mount Technology, a method used to place tiny electronic parts onto a circuit board automatically.

An automatic SMT line is a group of machines working together in a factory to build electronic products like smartphones, LED displays, medical devices, and car electronics. These lines use robotic arms, ovens, inspection tools, and conveyors to produce circuit boards fast, accurately, and with very little human effort.

Let’s explore how it all works step by step.

How Does an Automatic SMT Line Work from Start to Finish?

An SMT line works like a mini factory that turns blank PCBs into fully functioning circuit boards. The process includes the following steps:

1. Solder Paste Printing

A machine called a screen printer spreads a gray paste (solder paste) onto specific areas of the PCB using a stencil. This paste will hold the components in place before soldering.

2. Component Placement

A pick-and-place machine picks up tiny parts like resistors, chips, and capacitors, and puts them exactly where the paste is applied.

3. Reflow Soldering

The board goes through a reflow oven where the solder paste melts, permanently attaching the parts to the board. Then it cools down to harden the solder.

4. Optical Inspection

An AOI (Automatic Optical Inspection) machine checks the board for missing, wrong, or misplaced parts using cameras and software.

5. Testing and Unloading

Some boards go through testing to ensure they work properly. After that, a unloader machine stacks them for packaging or final assembly.

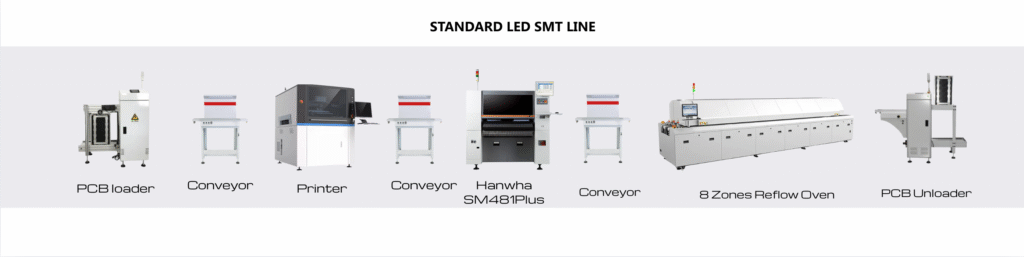

What Machines Are Used in an Automatic SMT Line?

Each machine in an SMT line plays an important role. Here’s a list of the main machines:

Screen Printer – Applies solder paste.
Pick-and-Place Machine – Places components quickly and accurately.
Reflow Oven – Melts solder paste to fix parts to the board.
AOI Machine – Inspects for errors using cameras.
SPI Machine (optional) – Checks solder paste before placement.
Conveyors and Buffers – Transport boards from one machine to the next.
Loader and Unloader – Start and end the line by loading and stacking boards.

What Types of Components Are Placed on SMT Lines?

SMT lines handle a wide variety of surface-mounted components, including:

Resistors – Control electrical flow.
Capacitors – Store electric charge.
IC Chips (Integrated Circuits) – Perform functions like computing and memory.
Transistors – Control voltage and current.
LEDs – Light-emitting diodes for displays and lighting.

These components are small, lightweight, and easy to mount on flat boards.

How Does Automation Improve SMT Line Efficiency and Accuracy?

Automated SMT lines are designed to run fast and with little error. Compared to manual assembly, they:

Place thousands of parts per hour
Operate 24/7 with minimal human supervision
Reduce human mistakes
Increase product consistency and quality
Save labor costs
Handle very small components that are hard to place by hand

How Is SMT Different from Through-Hole Assembly?

Through-hole technology (THT) is an older way of assembling PCBs. It requires drilling holes in the board and placing components with long leads through those holes. SMT, on the other hand, places parts directly onto the surface.

Feature	SMT Assembly	Through-Hole Assembly
Placement	On board surface	Through drilled holes
Speed	Very fast with automation	Slower, mostly manual
Component Size	Very small	Larger components
Manufacturing Cost	Lower	Higher
Use Cases	Phones, laptops, TVs	Power equipment, aerospace

What Are the Main Benefits of Using an Automatic SMT Line?

Manufacturers choose SMT lines for many reasons:

Faster Production – Complete more boards in less time.
Lower Labor Costs – Fewer operators needed.
Compact Product Design – Supports miniaturized and lightweight devices.
High Accuracy – Machines place parts precisely every time.
Scalability – Easy to produce large volumes.

What Are the Common Applications of SMT Lines Across Industries?

SMT lines are used in almost every modern electronics sector:

Consumer Electronics – Smartphones, tablets, smartwatches.
Automotive – ECUs, sensors, ADAS systems, car lighting.
Medical Devices – Patient monitors, infusion pumps, diagnostic tools.
Aerospace – Compact, lightweight, and rugged PCBs.
Industrial Automation – Controllers, smart meters, robots.

How Is Industry 4.0 and AI Changing SMT Manufacturing?

Modern SMT lines are becoming smart with the help of Industry 4.0 technologies. These include:

Real-time data tracking from each machine
AI-based quality control and defect detection
Predictive maintenance to reduce machine downtime
Remote monitoring and control of production

Such advancements help factories reduce waste, improve uptime, and increase profitability.

Frequently Asked Questions (FAQ) About Automatic SMT Lines

What is an SMT Line Used For?

It is used to automatically build circuit boards for electronic devices.

How Does an SMT Line Work Step-by-Step?

Print solder paste → Place components → Heat in reflow oven → Inspect → Test

What Are the Main Parts of an SMT Line?

Screen printer, pick-and-place machine, reflow oven, AOI machine, conveyor system, and loader/unloader.

What Are the Key Benefits of an SMT Line?

Fast production, consistent quality, fewer workers needed, and lower production costs.

How Do I Choose the Right SMT Line for My Factory?

Consider your product type, daily production quantity, machine budget, and how much automation you need. Speak with SMT equipment providers for tailored solutions.
